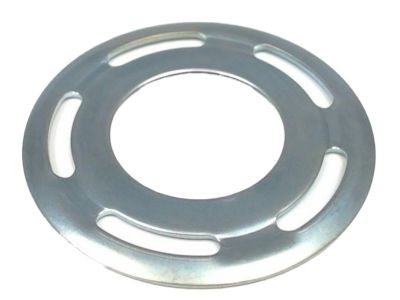

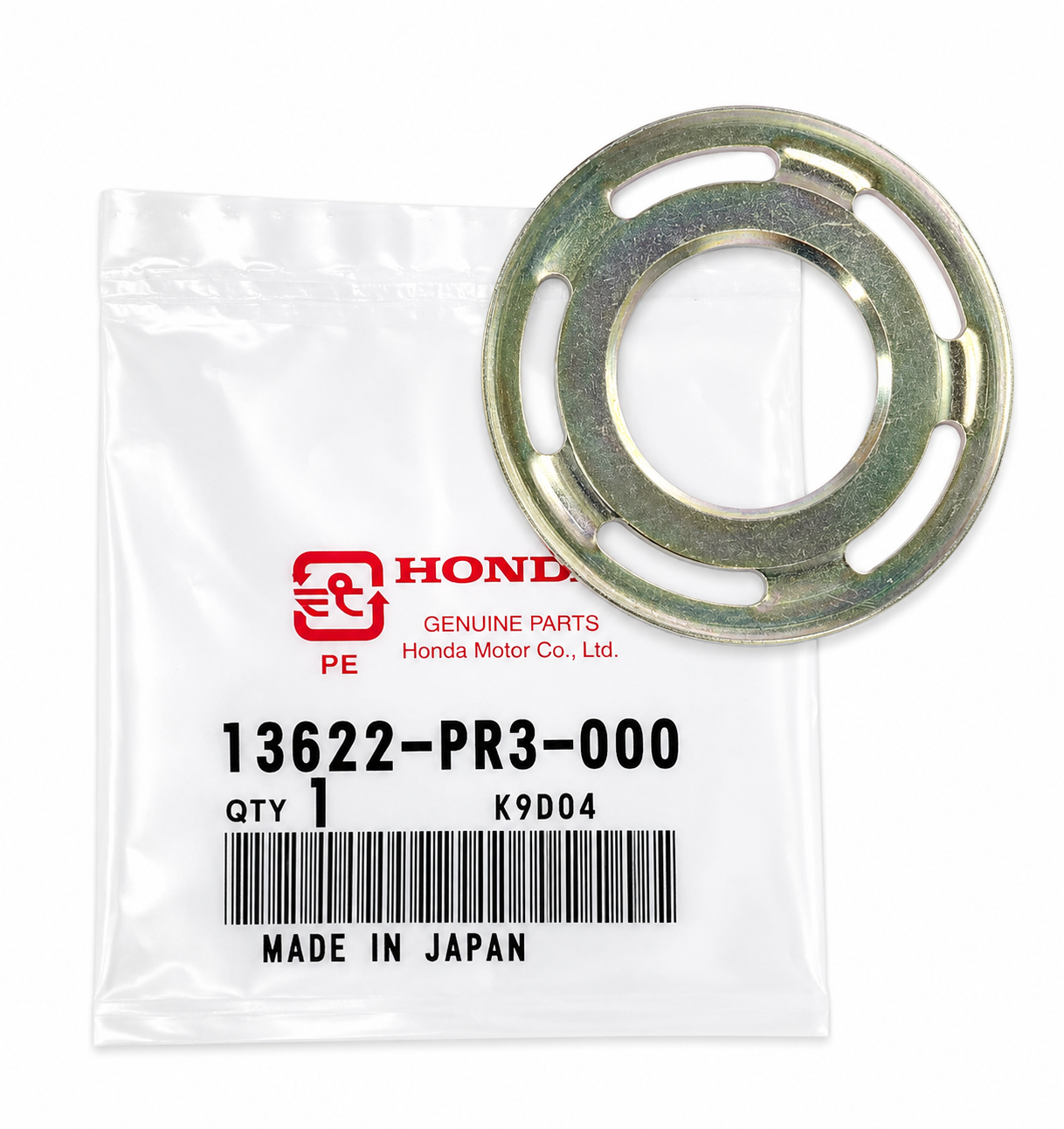

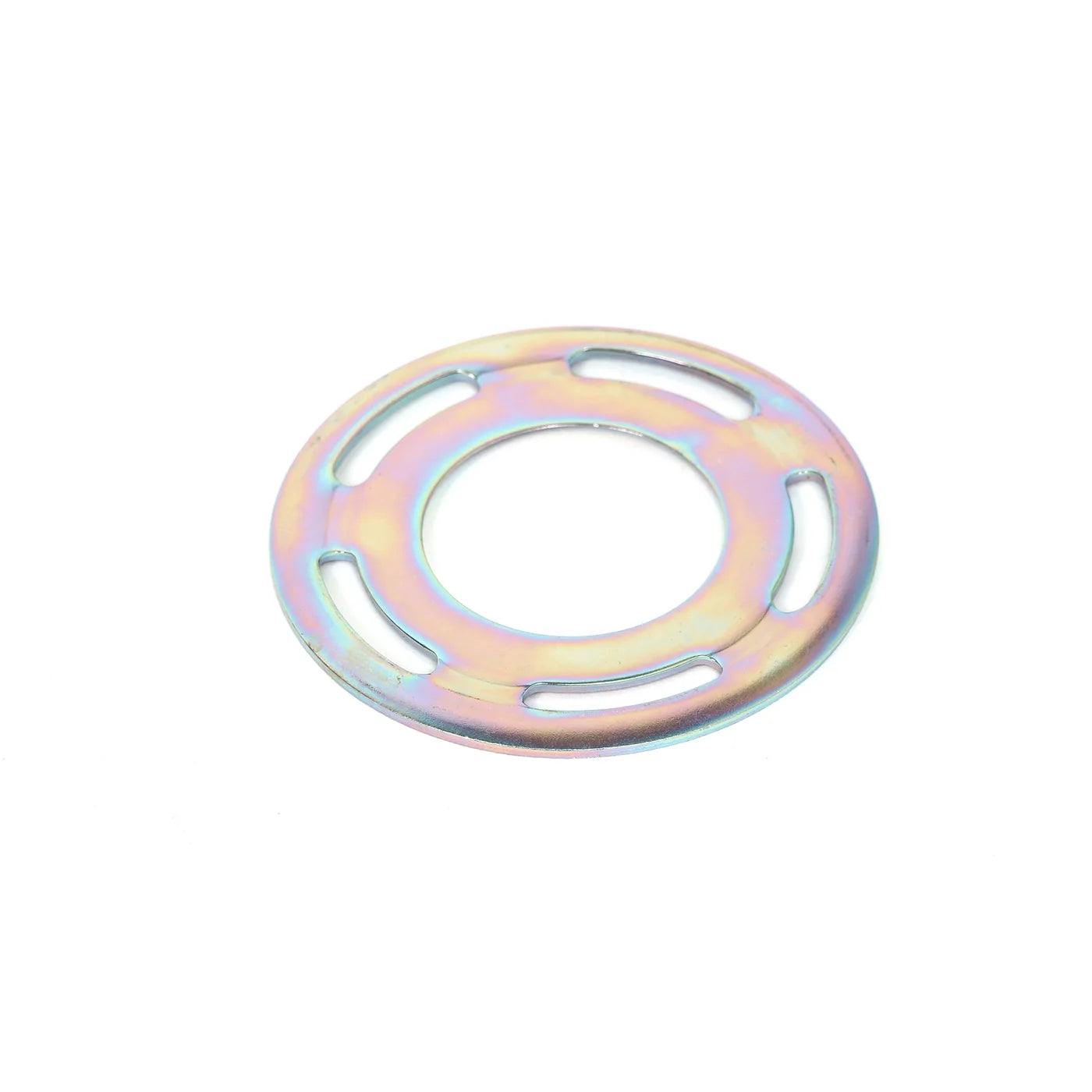

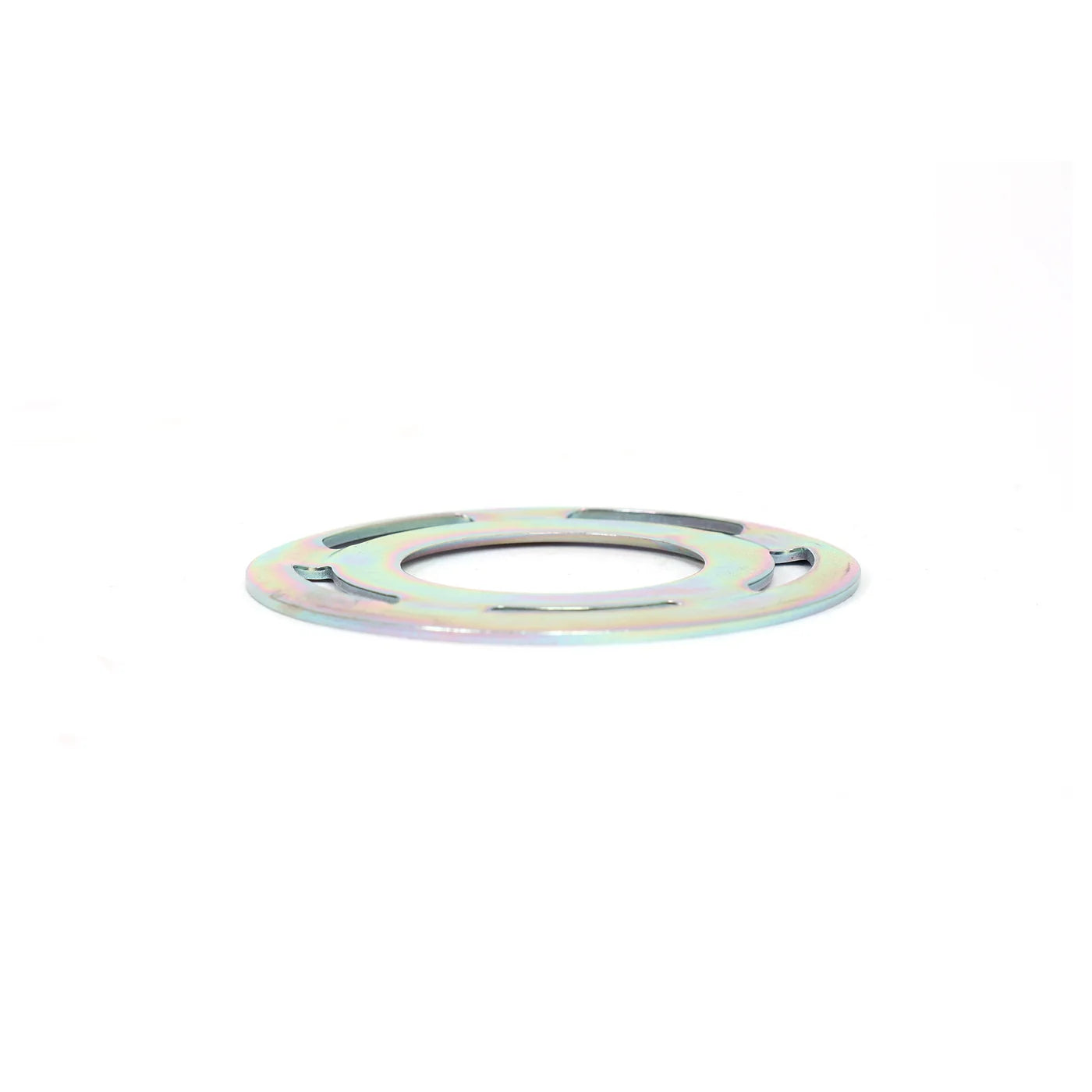

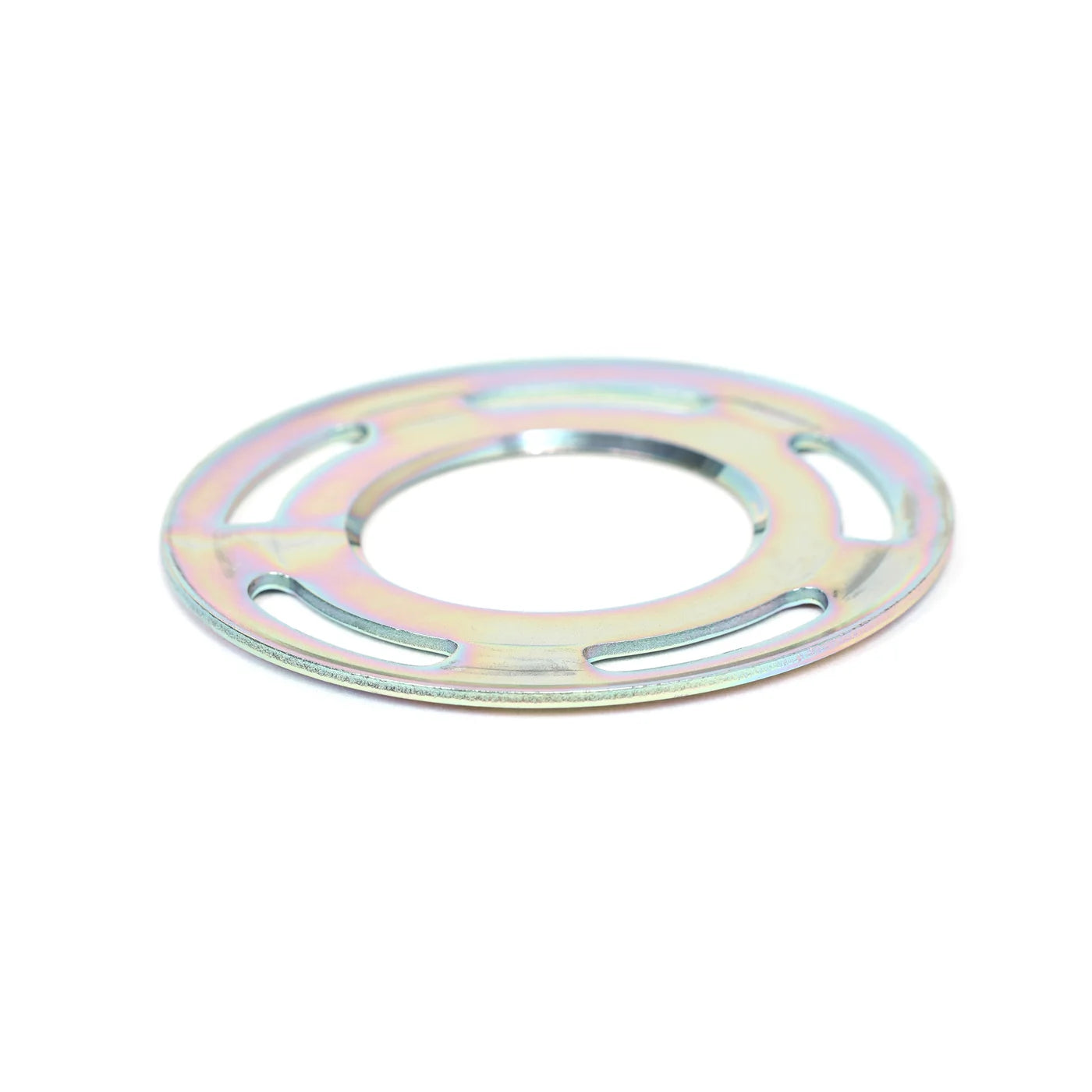

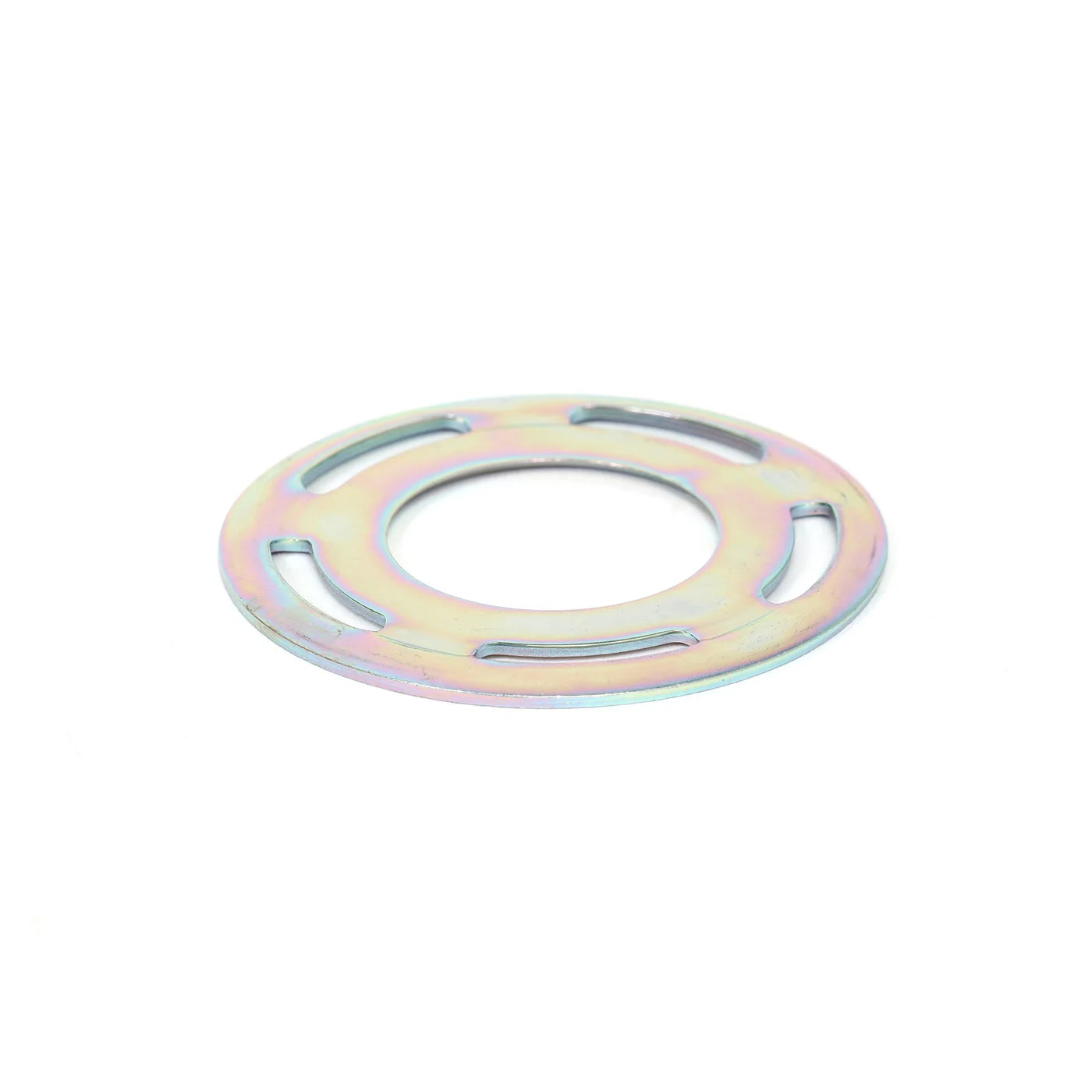

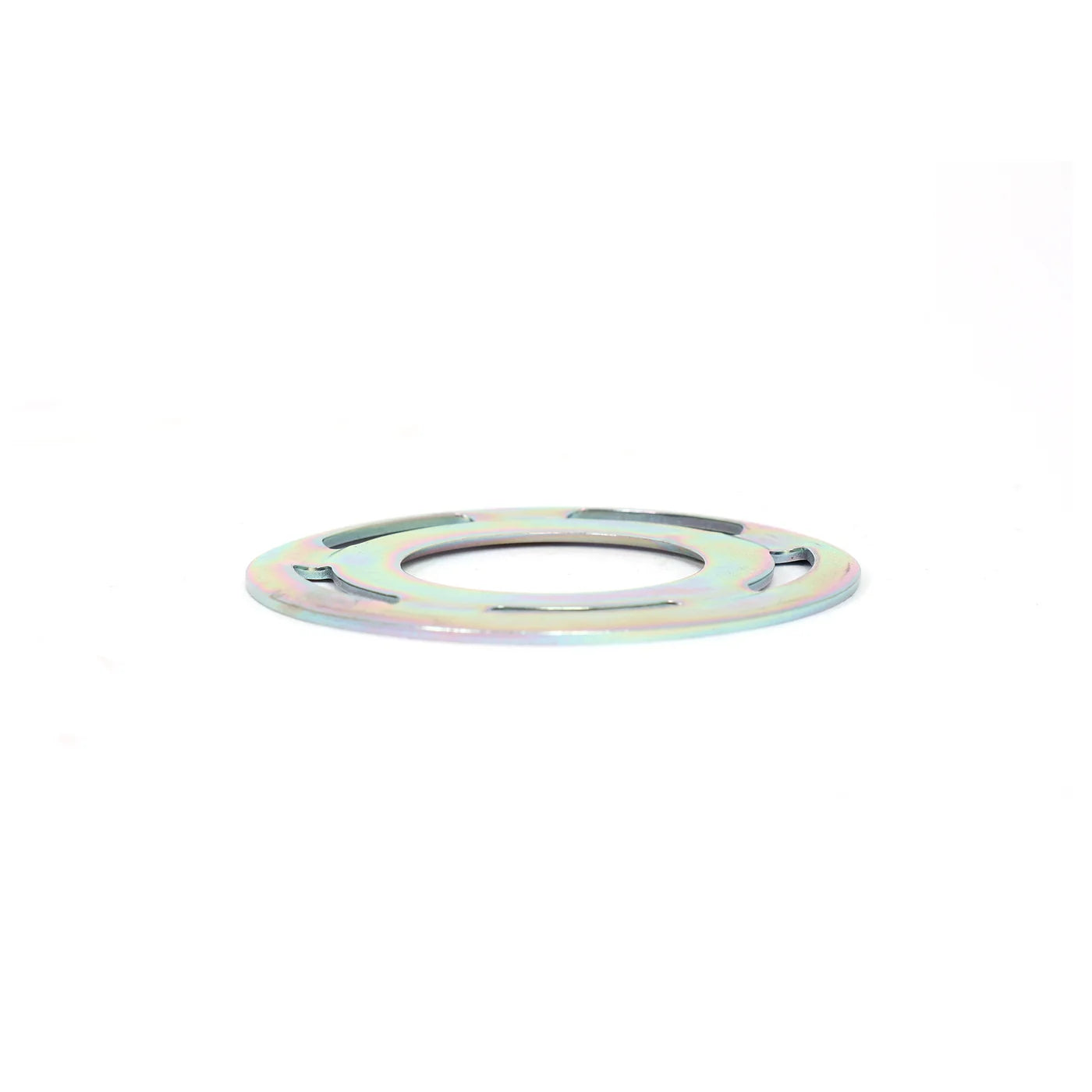

Honda - Genuine Honda 13622-PR3-000 Timing Belt Guide Plate | B16 B18 B20 DOHC Engines

The Honda 13622-PR3-000 is the OEM Timing Belt Guide Plate (also called a crankshaft timing belt guide or timing belt guide washer). It is a small but very important component on Honda B-series DOHC engines.

Genuine Honda 13622-PR3-000 Timing Belt Guide Plate. OEM crankshaft timing belt guide designed to keep the timing belt properly aligned on Honda B-series engines. Helps prevent belt walk, premature belt wear, and timing belt failure. Direct factory replacement for B16, B18, and B20 engines. Essential whenever performing a timing belt service.

What it does:

The guide plate mounts on the crankshaft, directly behind or in front of the timing belt crank sprocket (depending on engine/version). Its job is to:

• Keep the timing belt centered on the crankshaft sprocket.
• Prevent the timing belt from “walking” sideways at high RPM.
• Reduce the chance of the timing belt riding off the edge of the sprocket.
• Protect against catastrophic engine damage caused by belt misalignment or belt derailment.

Why it’s important:

Although it only costs around $8–10 USD, it can prevent thousands of dollars in engine damage.

If the guide is:

• bent,
• installed backwards,
• missing, or
• excessively worn,

the timing belt can move sideways, causing incorrect valve timing or, in severe cases, allowing the belt to skip teeth. On Honda interference engines, this can result in bent valves.

Common applications:

Honda used this guide plate on many B-series engines, including:

• B16A2
• B16A3
• B18A1
• B18B1
• B18C1 (GS-R)
• B18C5 (Type R)
• B20B
• B20Z

Factory vehicle applications include:

• 1999–2000 Civic Si (EM1)
• 1994–1997 Del Sol VTEC
• 1997–2001 CR-V
• 1990–2001 Acura Integra (various B-series models)
