Honda - Genuine Honda K-series VTC/VVT Oil Control Solenoid Valve | 15830-PNC-003 | K20

Honda - K-Series VTC Oil Control Valve Assembly

It is an electrically controlled hydraulic valve used in the engine’s variable valve timing system.

The solenoid’s job is to control the flow and pressure of engine oil going to the variable valve timing mechanism. The engine computer (ECU/PCM) commands the solenoid to open or close as operating conditions change. By directing pressurized oil to the camshaft timing actuator, the system can advance or retard camshaft timing. This allows the engine to adjust valve timing according to RPM, engine load, temperature, and driving conditions.

In practical terms, this component helps the engine achieve a better balance of power, fuel efficiency, smooth operation, and emissions control. At lower engine speeds, the computer can select cam timing that favors smoothness and efficiency; under acceleration or higher loads, it can alter the timing to improve engine response and performance.

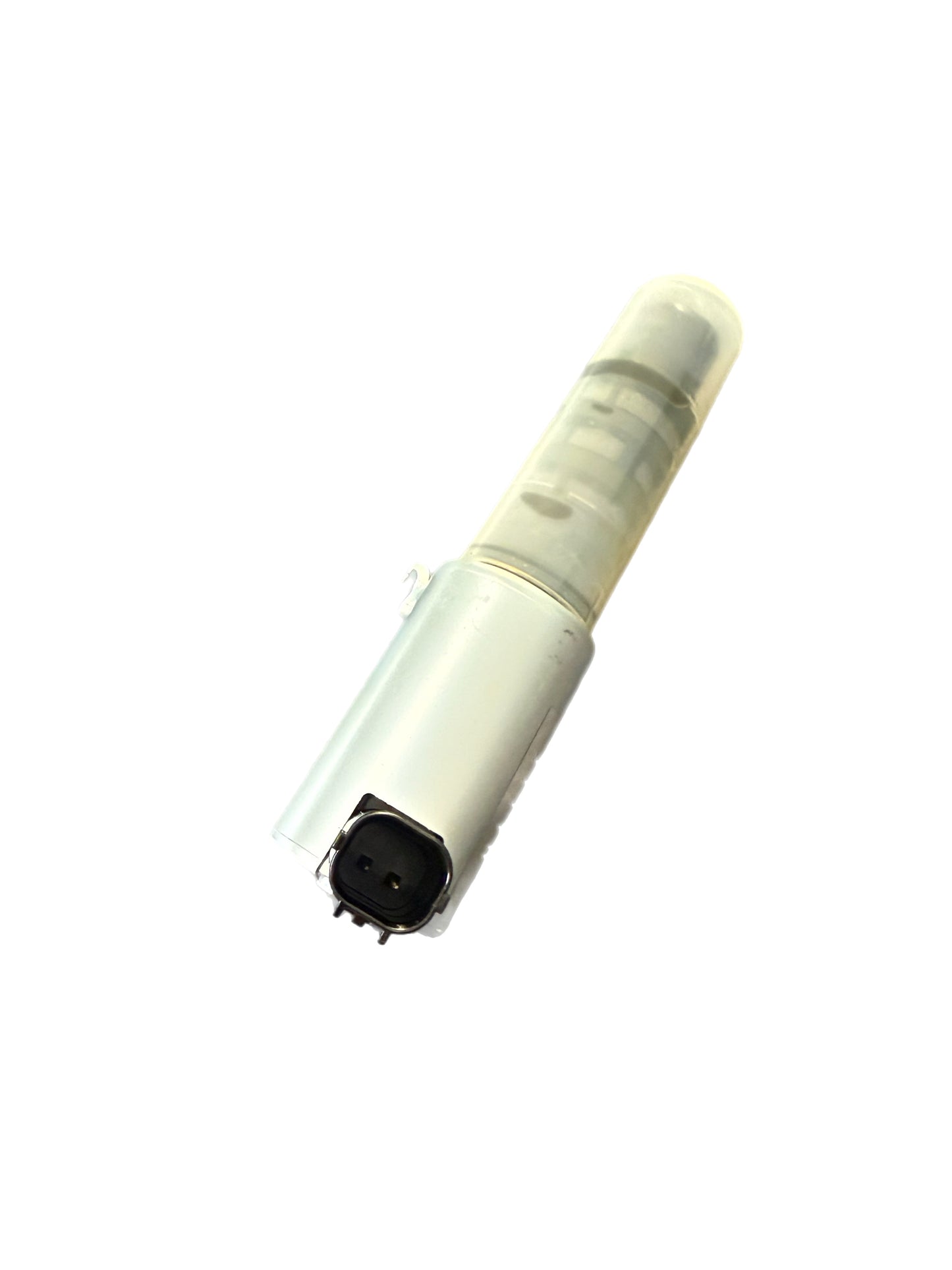

The pictured component has a metal cylindrical solenoid body, an electrical connector for receiving commands from the engine computer, and a long spool/filter section with multiple sealing rings. That section installs into an oil passage in the engine. The seals keep oil pressure properly separated between passages while the internal valve regulates where the oil is directed. The package is marked Honda Genuine Parts, Made in Japan, and 15830-PNC-003.

When an oil-control/VTC solenoid becomes clogged, sticks, or electrically fails, possible symptoms can include a check-engine light, variable-valve-timing trouble codes, rough or unstable operation, reduced acceleration, poor fuel economy, or abnormal engine performance. Because the valve operates using engine oil, dirty oil, sludge, restricted passages, or incorrect oil can sometimes contribute to VTC/VVT-related problems.

Genuine Honda VTC/VVT Oil Control Solenoid Valve – Part #15830-PNC-003. This OEM Honda engine-control component regulates pressurized engine-oil flow to the variable valve timing system, allowing the engine computer to adjust camshaft timing for optimum performance, efficiency, drivability, and emissions. Features an integrated electrical solenoid, precision oil-control valve, sealing rings, and OEM Honda construction. Genuine Honda part manufactured in Japan.

Important: Vehicle compatibility should be confirmed using 15830-PNC-003 and the vehicle’s VIN/model/engine before installation, since appearance alone isn’t enough to guarantee fitment.

Vehicle Fitment

• 2002-2004 Honda CR-V
• 2002-2005 Honda Civic
