PRL Motorsports - 2016-2021 Honda Civic 1.5T Intercooler Upgrade

PLEASE ALLOW AN ADDITIONAL TWO WEEKS FOR POWDERCOATED INTERCOOLERS TO BE PROCESSED AND SHIPPED.
Fits all 2016-2021 Civic 1.5TFits all variant models including Si, CVT 6MT, RHD, International Models, Etc.
Overview

INTERCOOLER INSTALL GUIDE

Important Notes:

NO ECU CALIBRATION REQUIRED
THERE ARE (2) TOTAL O-RINGS IN THE FACTORY CHARGE PIPE SYSTEM. O-RINGS MAY BE SUBJECT TO REPLACEMENT IF TORN, DRY-ROTTED, DISFORMED OR HIGH MILEAGE
REMOVAL OF LOWER FACTORY INTAKE AIR BOX DAMPER IS RECOMMENDED FOR OPTIMAL FITMENT
FITS FACTORY CHARGE PIPING OR PAIR WITH OUR CHARGE PIPE UPGRADE KIT FOR OPTIMAL PERFORMANCE
PLEASE CALL OR EMAIL IF PAIRING WTH V1 CHARGE PIPING

Technical Notes:

It's no secret that Honda's 1.5L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs. The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 550+ horsepower rated (though we have pushed 600+) 25.6x4x6.3" bar-and-plate bar-and-plate core and machined billet aluminum end tanks! This intercooler utilizes factory mounting spots with our embossed end tanks. Kits will come with all hardware needed for a seamless install.

Performance Gains:

9 horsepower & 3 ft/lb torque gains by simply bolting on
50+ F degree drop in post charge air temperature at peak
Average of 36 F degree drop in post charge air temperature
Increased efficiency & consistency in power delivery
Increased engine safety

Kit Includes:

(1) Intercooler Assembly w/ Billet End Tanks
(2) Air Guides w/ Stainless Hardware

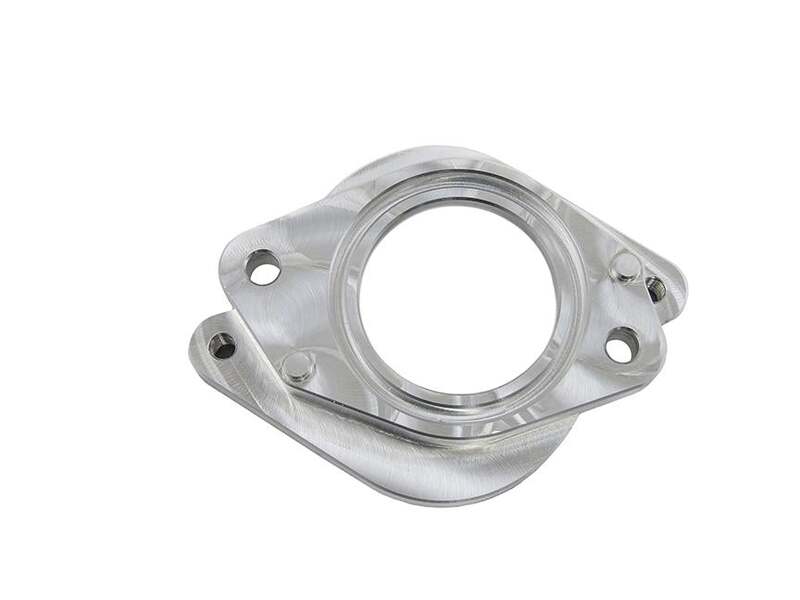

(2) Billet Aluminum Factory Charge Pipe Adapters
(1) Cardboard Stencil w/ PRL Logo
(2) PRL Factory Style Replacement O-Rings

Testing Data:

BLOG LINK Intercooler Core Information:BLOG LINK
